CR-S Range

The slim line of interface relays and optocouplers

The pluggable interface relays and optocouplers of the CR-S Range are used for electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC, iPC or field bus systems and the sensor / actuator level. The CR-S Range combines the flexibility of a modular system and the ability of switching high currents on a small footprint thus can be used in applications where space saving is essential.

Main benefits

• Space saving
• Modular
• LED integrated on all sockets

Main features

• 9 different coil voltages from 5-24 V DC / 12-230 V AC/DC
• 1 c/o contact (6 A), Transistor, MOS-FET, Triac
• Optional gold plated version available
• LED integrated in all sockets
• Complete variants for high runners such as 24 V AC/DC, 110 V AC/DC, 230 V AC/DC
• Accessories like jumper bars, markers and separators avialable

Pluggable interface relays CR-S Range

− Complete variation (relays assembled on socket) for highrunners:

− 24 V AC/DC, 110 V AC/DC, 230 V AC/DC

− Relay with standard and gold-plated contacts

− Standard (AgSnO2), gold-plated (AgSnO2/Au)

− Sockets with LED

− Screw/spring connection terminal

− Cadmium free contact material

− Further accessories

− Jumper bar, marker, separator

electronics relay

delay time relay

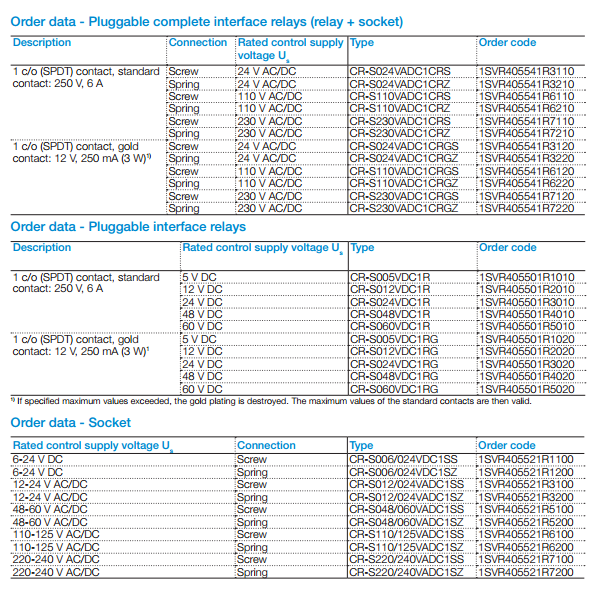

Pluggable Interface Electronic Control Relay CR - S Range Cr-S048/060vadc1sz 250vac Spring Terminals Images
